DEWALT DCD996B Bare Tool 20V MAX XR Brushless 3-Speed Hammer Drill Review

Power tools are an investment, and if we want to own equipment that can last for a long time, we need to purchase quality products that will not only do the job smoothly but must have topnotch construction and design as well. Thankfully we can always rely on Dewalt’s products, which are highly appreciated in the biz by both amateurs and professionals. In this review, we are going to talk about the Dewalt DCD996B.

Drills can help us finish DIY projects due to its power and versatility. There are lots of similar products like this particular model in the market however will this one bring tons of value to your money? Let us find out and see whether this drill deserves a place in your array of power tools.

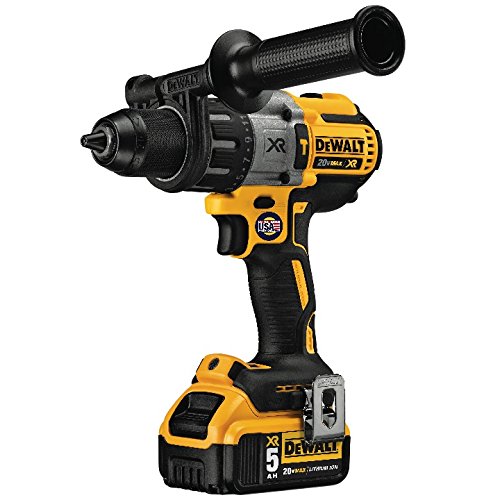

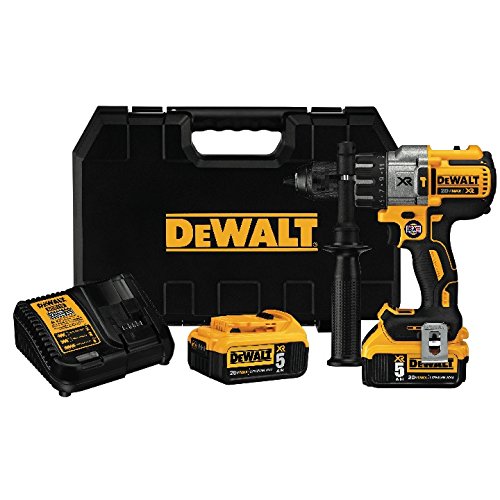

DEWALT DCD996P2 20V MAX XR Lithium Ion Brushless 3-Speed Hammer Drill Kit



  • Comes with brushless motor for efficient operations
  • Has powerful 3-speed motor
  • Includes high-quality 1/2 inch ratcheting metal chuck with carbide inserts for better grip
  • Has 3-mode LED light plus 20-minute automatic shutoff
  • Has 360-degree side handle
  • Backed by 3-year limited warranty


  • Does not come with charger

Our Opinion

Multiple Functionality

DEWALT DCD996P2 20V MAX XR Lithium Ion Brushless 3-Speed Hammer Drill KitCompared to other drills in the market, the DCD996 has another function—it can also serve as a hammer drill hence it can tackle common drilling tasks, screwdriving procedures and percussion drilling. You may not have the use of the hammer drill function just yet but it’s pretty much a convenient feature since you’ll never know you might need it someday.

To set the hammer feature off, users can simply switch the torque adjustment collar, which is a rotary switch located at the back of the chuck to the symbol bearing the hammer drill image.

Read More:  PORTER-CABLE vs DEWALT Cordless Drill Driver

Powerful and Utilitarian

DEWALT DCD996P2 20V MAX XR Lithium Ion Brushless 3-Speed Hammer Drill KitThe drill delivers when it comes to power output—it has a high power rate of 820 UWO or units watts out. If you will notice as well, the more affordable drills from the brand come with lower power rating clocking in at 500 UWO or below. Thus this drill’s 820 UWO is a clear indication of its high power.

Due to its 3 speed settings, the unit can readily tackle a nice range of applications. Speed levels begin from 0-450 being the highest torque option, 0-1,300 for mid torque speed and 0-2,000 for the highest speed option. It also includes a variable speed reversible feature and can operate in both reverse rotation, forward and variable speed.

For safer usage, the forward and reverse control button also functions as a lock-off button to stop users from switching the drill on by accident. This unit also includes a brake to guarantee that the chuck will stop operations once the trigger switch is set off.

Innovative and Durable

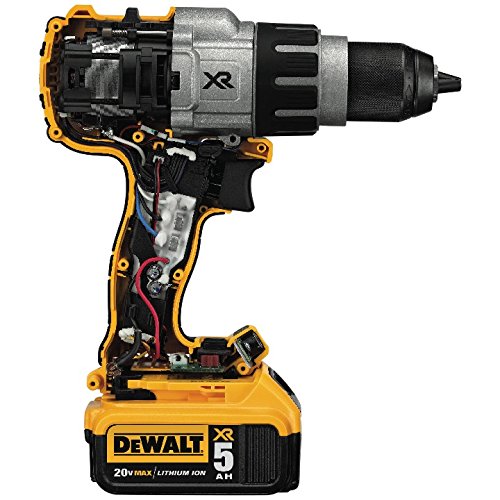

As for quality construction, the materials used to make this drill are topnotch. For one, it includes a strictly metal transmission and a ratcheting chuck made from nitro-carburized metal. The chuck is keyless as well which means it will make changing the bits easier and faster for all users.

The brushless motor is another advantage of this drill since it operates cooler compared to standard brushed ones. Because no excess heat is involved, this means your drill’s lifespan is extended. Moreover, because there is a lack of physical exchange which results in a loss of energy, it makes for a power-efficient drill too.

Read More:  Hitachi DB3DL2 Vs. BLACK+DECKER PD600 Vs. DEWALT DCF680N2 Vs. Makita DF010DSE

Useful Attachments and Accessories

DEWALT DCD996P2 20V MAX XR Lithium Ion Brushless 3-Speed Hammer Drill KitThe drill operates with the help of lithium ion technology and it is complemented by a good range of options for battery. The use of lithium ion batteries has its good share of benefits—using this type of battery means there will be no self-discharge and zero memory.

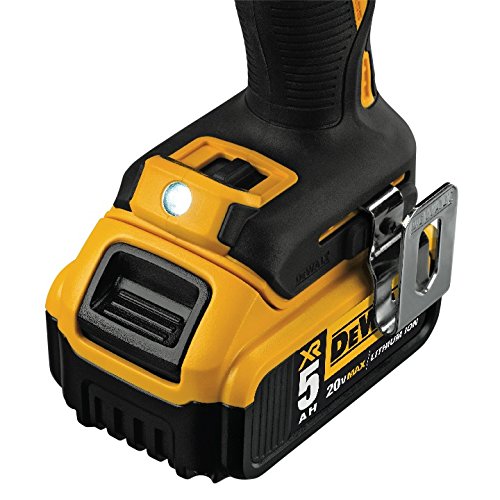

For additional convenience, just like other Dewalt drill models, this unit has a LED light. This makes tackling projects in dimly lit spaces easier for users. It can be turned on once the trigger switch is pressed on. The switch that lets users change the intensity of the illumination can be found at the foot of the device. The unit comes with 3 light settings which are low, medium and spotlight. Other than that, it also comes with a helpful 20-minute shutoff.

Lastly, the unit has a belt hook which makes the drill a snap to carry around with you. It can be fastened to either side of the unit to better assist right or left-handed users.

However this product does have a drawback. Unlike other drill kits, this does not include a charger so you might need to purchase a separate product. Other than this minor hassle, the drill displayed great performance and a solid construction.

Comparison with Other Dewalt Drills

Comparison with DCD777C2

The DCD777C2 has a lower amount of power compared to this model so if you want tons of it for certain heavier procedures which need a quick fix, just stick with the DCD996B. The DCD777C2 though has a bigger option for its clutch at 15 compared with this model’s 11 clutch settings.

Comparison with DCD791D2

Both models have nearly the same array of features that deliver well from the brushless motor down to a high-quality metal chuck. However they do differ in terms of battery life. It is known that the DCD791D2 has excellent battery life and while this model’s battery did its job well, the former was impressive. Moreover, the DCD996B can be used as a hammer drill, which the DCD791D2 cannot perform.

Read More:  Dewalt Vs Milwaukee Impact Driver

Comparison with DCD950KX

This product has similarities with the DCD950KX as well. Both units come with a 3-speed metal transmission for quick application speed and enhanced operating times. They also come with work lights for better visibility in smaller spaces. One difference of the DCD950KX of this unit though is that it has a self-tightening chuck which constricts during use for additional, more secure grip.

DEWALT DCD996P2 20V MAX XR Lithium Ion Brushless 3-Speed Hammer Drill Kit


Cordless is the way to go and if you are on the hunt for a hammer drill that delivers and gets the job done in a snap, you can do good with the Dewalt DCD996B. It is worth the money you spend due to the power it brings, its efficiency and smooth, hassle-free run times.
